Introduction

The global bearing market is projected to reach $52.3 billion by 2027 (Statista, 2023), with 32005 tapered roller bearings being among the top 5 most requested technical drawings in mechanical engineering sectors. Industrial buyers frequently face three core challenges: verifying dimensional accuracy, understanding load capacity markings, and sourcing CAD-compatible blueprints. This guide will provide a comprehensive solution through: 1) Procurement best practices, 2) Technical decoding, 3) Market intelligence, and 4) Operational FAQs.

Procurement Guide

7 Must-Check Features in Bearing Technical Drawings

1. ISO 15:2011 tolerance class designation
2. Raceway surface finish (Ra 0.2μm minimum)

Technical Analysis

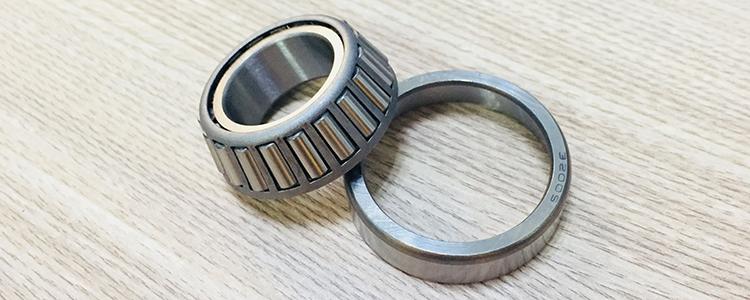

Critical dimensions include 25mm bore diameter (d), 47mm outer diameter (D), and 15mm width (B). The contact angle (12°-16°) directly impacts axial load capacity.

Market Trends

European manufacturers now require REACH-compliant lubrication specifications, while Southeast Asian buyers prioritize JIS B 1512:2018 compatibility. The North American market shows 18% annual growth in aftermarket bearing demand.

FAQ
