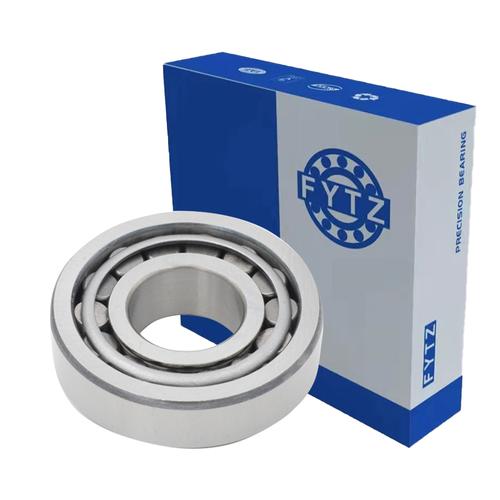

Tapered roller bearing 30205 is a precision component designed to handle combined radial and axial loads in machinery. Its conical geometry and optimized internal structure make it ideal for high-speed applications such as automotive transmissions, gearboxes, and industrial pumps. This bearing type ensures durability and efficiency in demanding operational conditions.

1. Tapered Roller Bearing 30205 Dimensions

The tapered roller bearing 30205 features standardized dimensions of 25mm inner diameter, 52mm outer diameter, and 16.25mm width. These measurements comply with ISO 355 standards, ensuring compatibility with industrial equipment worldwide. The specific cone angle of 15°10' enables optimal load distribution, while the precision-ground rollers reduce friction. Engineers must verify housing bore sizes and shaft tolerances during selection to prevent misalignment. Critical dimensional checks include cup and cone matching, as improper pairing can cause premature wear. Always cross-reference manufacturer catalogs for exact specifications when replacing bearings in gear systems or axle assemblies.

2. Applications of 30205 Tapered Roller Bearings

Tapered roller bearing 30205 excels in automotive wheel hubs, where it manages vehicle weight and cornering forces. Mining conveyor systems utilize these bearings for their shock resistance in heavy-load conditions. Agricultural machinery employs them in PTO shafts to withstand axial thrust from implement rotations. In wind turbines, 30205 bearings support gearbox intermediate shafts, enduring variable wind loads. Their sealed variants are preferred in food processing equipment where contamination resistance is crucial. Recent advancements include customized 30205 bearings for electric vehicle reduction gears, featuring enhanced thermal stability for high-RPM operations.

3. How to Install 30205 Tapered Roller Bearing

Proper installation begins with cleaning the shaft and housing using non-linting cloths. Apply a thin layer of EP2 grease to the bearing seat before mounting. Use induction heaters to uniformly warm the bearing to 80-90°C for interference fits. Always press on the ring being mounted – never hammer directly on rollers. For tapered bore bearings, tighten the adapter sleeve until specified axial clearance is achieved. Post-installation, verify rotational smoothness and measure initial running torque. Common mistakes include over-tightening lock nuts and neglecting runout measurements. Always follow OEM torque specifications using calibrated tools to prevent brinelling.

4. 30205 Bearing Load Capacity

The dynamic load rating of 30205 tapered roller bearings is 40.5kN, with a static load capacity of 48.5kN. These values assume proper lubrication and alignment. In angular contact configurations, axial load capacity reaches 70% of radial ratings. Temperature derating factors apply above 120°C – reduce maximum loads by 15% for every 20°C increase. Shock loads should never exceed 200% of static capacity. For oscillating applications like hydraulic cylinder joints, recalculate life expectancy using oscillation factors. Recent metallurgical improvements have increased fatigue limits by 12% in premium-grade 30205 bearings through vacuum degassing processes.

5. Maintenance Tips for 30205 Tapered Roller Bearings

Implement condition monitoring using vibration analysis to detect early pitting signs. Relubricate every 2,000 operating hours with ISO VG 68 oil-based grease. Flush old lubricant completely during maintenance to prevent additive incompatibility. Check for false brinelling marks if equipment experiences prolonged stationary periods. Store spare 30205 bearings vertically in original packaging at <40% humidity. For seawater-exposed applications, use zinc-dialkyldithiophosphate additives to combat corrosion. Always replace bearings in matched pairs when used in back-to-back arrangements. Thermal imaging during operation helps identify lubrication failures before catastrophic wear occurs.

Understanding tapered roller bearing 30205 applications requires analyzing five critical aspects: dimensional specifications, industrial use cases, proper installation techniques, load management strategies, and maintenance protocols. Each factor directly impacts bearing performance and machinery uptime. This comprehensive guide addresses common operational challenges, from selecting appropriate lubrication systems to interpreting vibration analysis data. Whether optimizing automotive drivetrains or maintaining mining equipment, these insights enable engineers to maximize bearing service life while reducing maintenance costs.

In conclusion, the tapered roller bearing 30205 serves as a critical component across multiple industries due to its robust load-bearing capabilities and adaptability. Proper selection, installation, and maintenance practices significantly enhance operational reliability. Engineers must stay updated on evolving lubrication technologies and predictive maintenance techniques to fully leverage this bearing's potential in modern mechanical systems.
